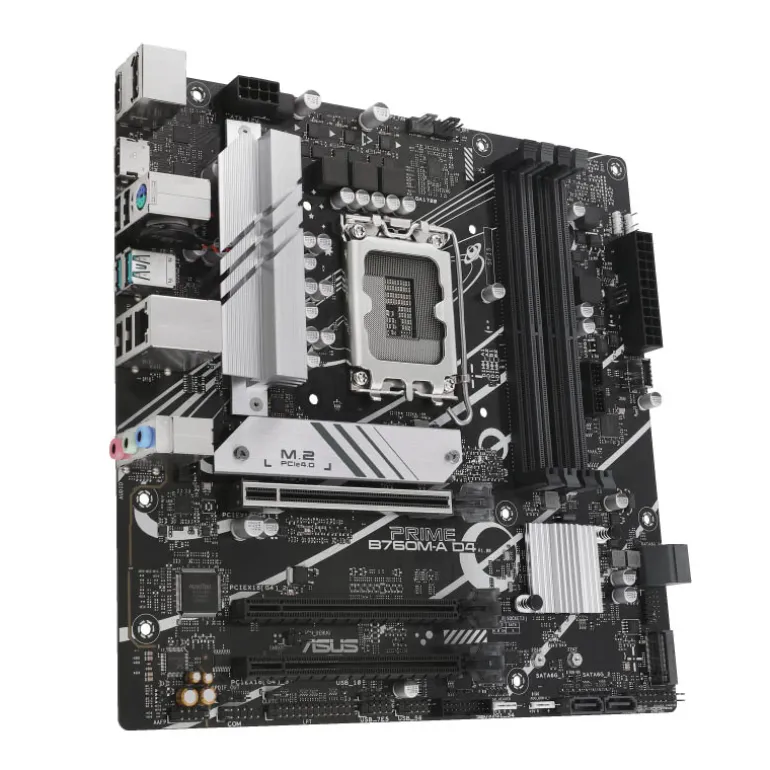

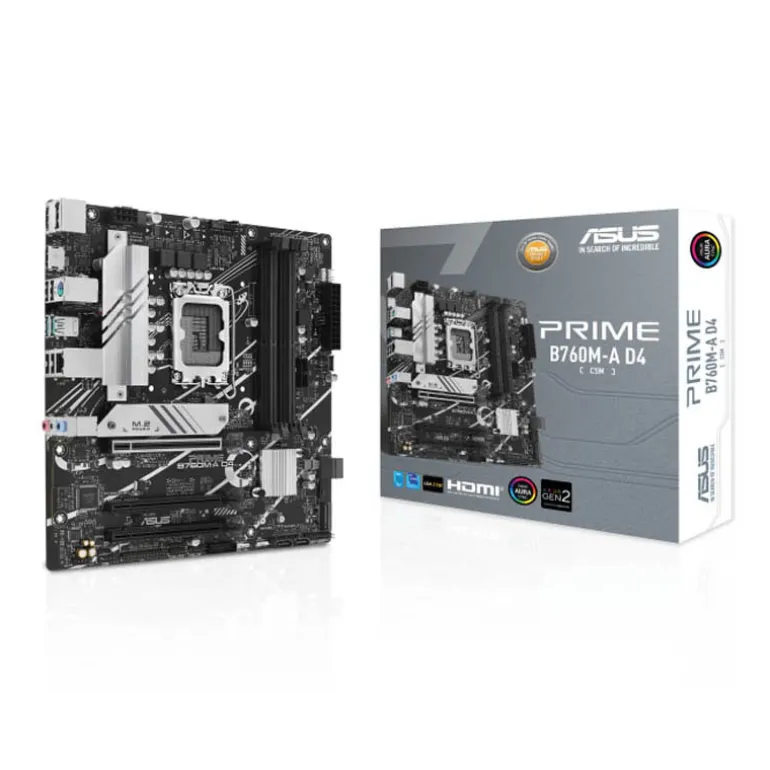

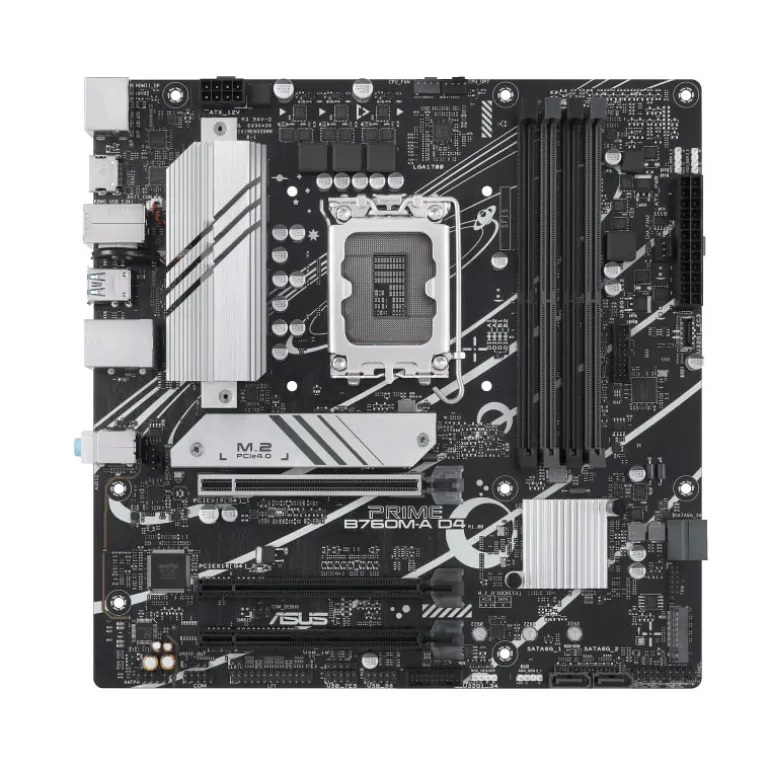

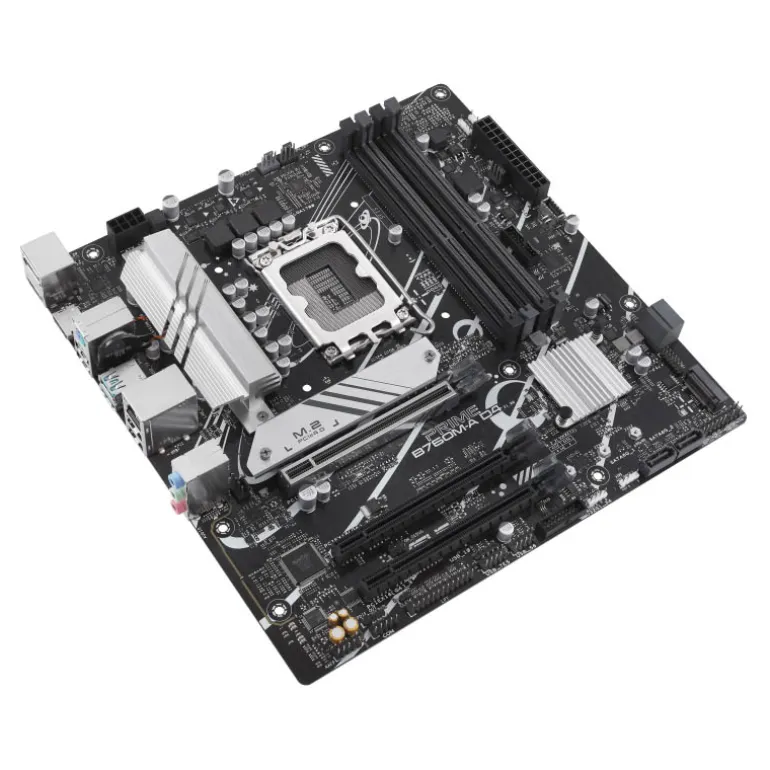

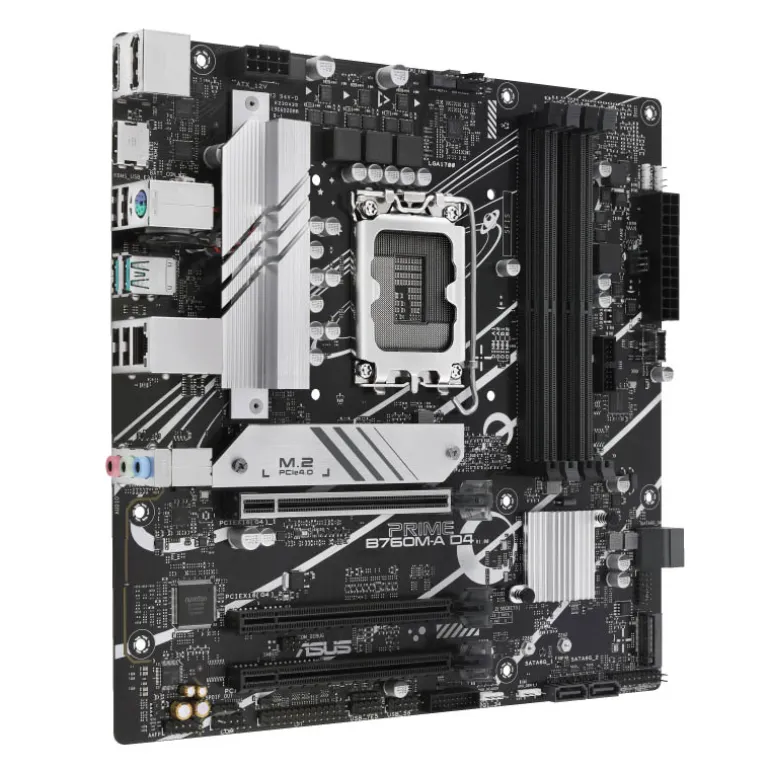

Placa Base Asus Prime B760M-A D4-CSM Socket 1700

• Intel® Socket LGA1700 para procesadores Intel® Core鈩ª generación y procesadores Intel® Core鈩® Gold y Celeron® de 12.ª generación *
• Compatible con la tecnología Intel® Turbo Boost 2.0 y la tecnología Intel® Turbo Boost Max 3.0

Chipset


• Intel B760

Memoria


• 4 módulos DIMM, máx. 128 GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
• 3733(OC)/3600( OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Memoria sin búfer, sin ECC*
• La arquitectura de memoria de dos canales admite el perfil de memoria
• Intel Extreme (XMP)
• OptiMem II

Slots

•
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)

Gráficos


• 1 x DisplayPort
• 2 x HDMI

Almacenamiento


• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

•
• 2 x USB 3.2 Gen 2 ports (2 x Type-A )
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio


• CÓDEC de audio de alta definición con sonido envolvente Realtek 7.1*
• Compatible con: detección de jack, transmisión múltiple, reasignación de jack del panel frontal
• Admite reproducción de hasta 24 bits/192 kHz
• Blindaje de audio
• Condensadores de audio premium
• Capas de PCB de audio dedicadas

Conectividad y redes


• 1 Ethernet Realtek de 2,5 Gb

Conectores Internos

•
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 1 x USB 2.0 header supports 1 additional USB 2.0 port
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x LPT header
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function

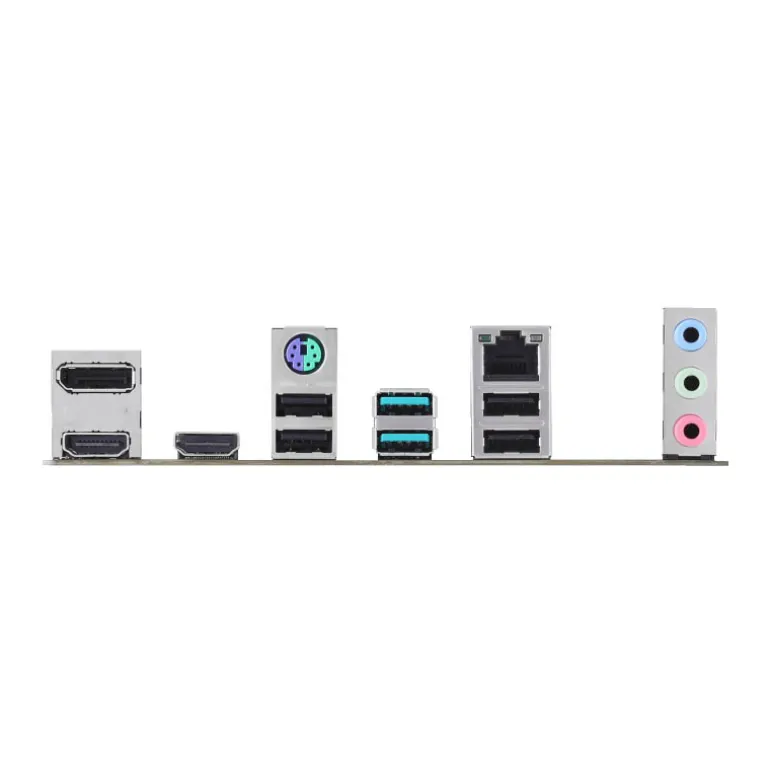

Conectores Traseros


• 2 x USB 3.2 Gen 2 ports (2 x Type-A )
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 2 x HDMI® ports
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

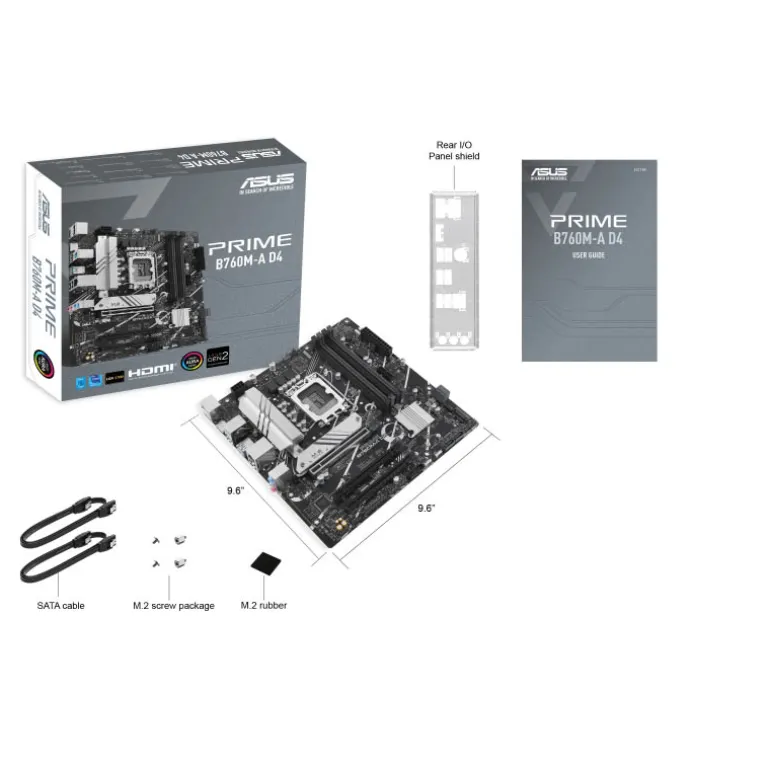

Factor de forma


• mATX ( 24.4 cm x 24.4 cm )
