- Intel® Socket LGA1700 for 13th Gen Intel® Core鈩& 12th Gen Intel® Core鈩® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- *Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel® B760 Chipset
Memoria
- 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Gráfica
- 1 x DisplayPort**
- 2 x HDMITM ports***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots
- Intel® 13th & 12th Gen Processors
- 1 x PCIe 4.0 x16 slot
- Intel® B760 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
- Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Almacenamiento
- Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
- Wi-Fi 6
- 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
- * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
- Rear USB (Total 6 ports)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 10 ports)
- 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- – Supports up to 24-Bit/192 kHz playback
- Audio Features
- – Audio Shielding
- – Premium audio capacitors
- – Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

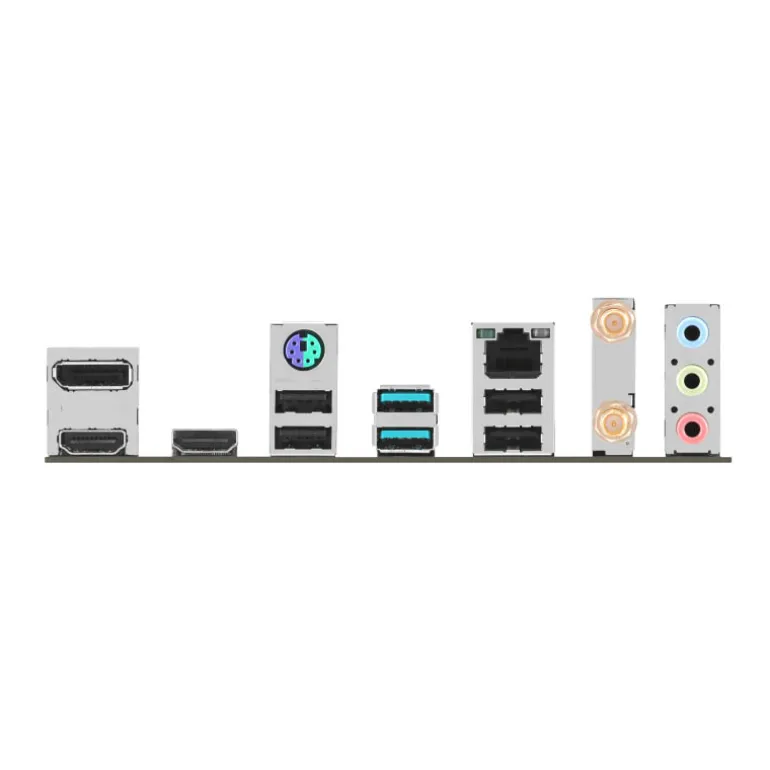

Panel trasero I/O Ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 2 x HDMITM ports
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Conectores internos I/O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header supports 1 additional USB 2.0 port
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
Características especiales
- ASUS 5X PROTECTION III
- – DIGI+ VRM
- – LANGuard
- – Overvoltage Protection
- – SafeSlot Core+
- – Stainless-Steel Back I/O
- ASUS Q-Design
- – Q-DIMM
- – Q-LED Core
- – Q-Slot
- ASUS Thermal Solution
- – M.2 heatsink
- – VRM heatsink design
- ASUS EZ DIY
- – ProCool
- Aura Sync
- – Aura RGB header
- – Addressable Gen 2 headers
Características Software
- ASUS Exclusive Software
- Armoury Crate
- – Aura Creator
- – Aura Sync
- – Fan Xpert 2+
- – Power Saving
- AI Suite 3
- – Digi+ VRM
- – PC Cleaner
- ASUS CPU-Z
- MyAsus
- Norton Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- – ASUS CrashFree BIOS 3
- – ASUS EZ Flash 3
- – ASUS UEFI BIOS EZ Mode
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
- WOL by PME, PXE
Accessorios
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- Documentation
- 1 x User guide
Sistema Operativo
- Windows® 11, Windows® 10 64-bit
Factor Forma
- mATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

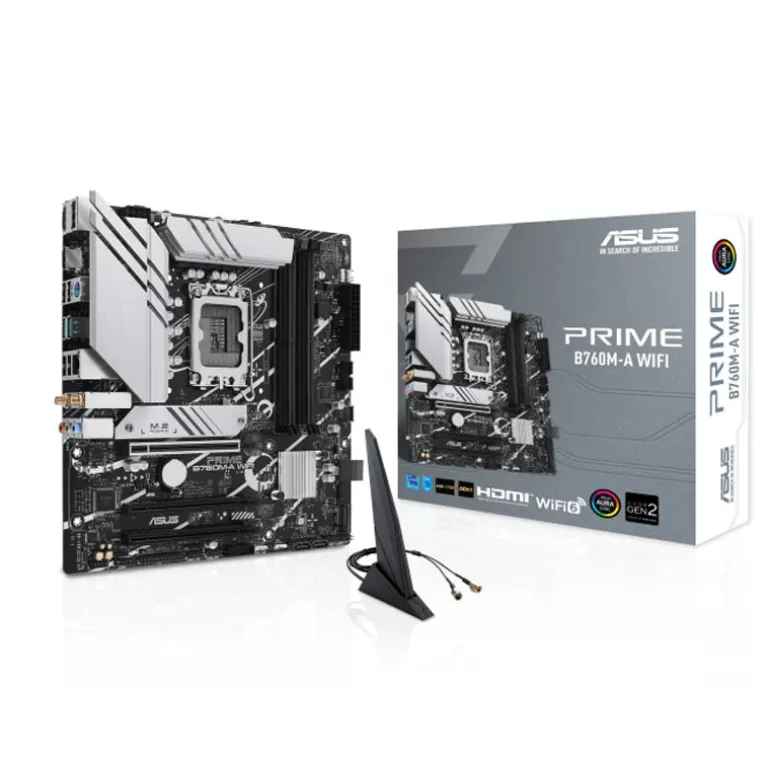

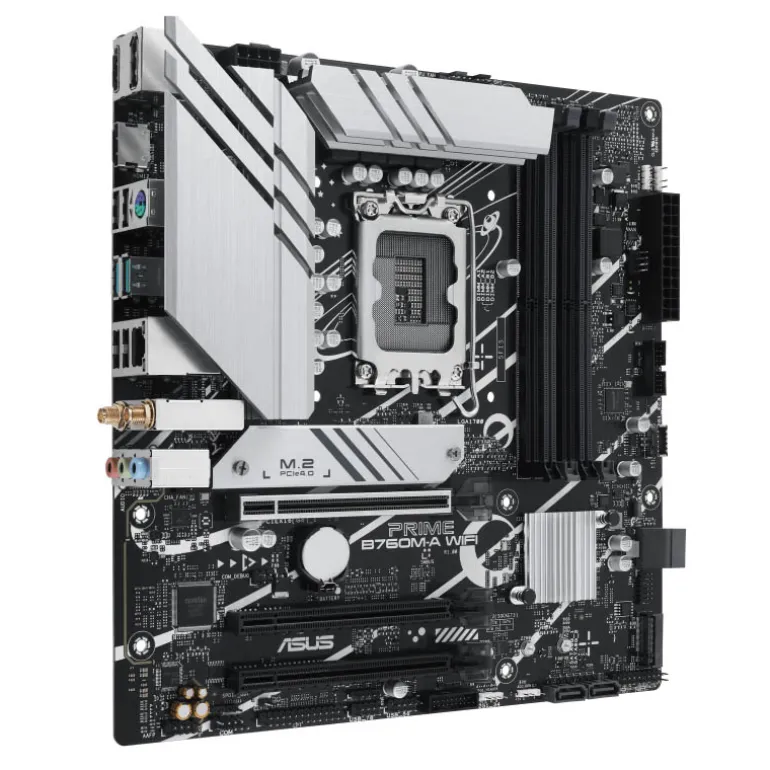

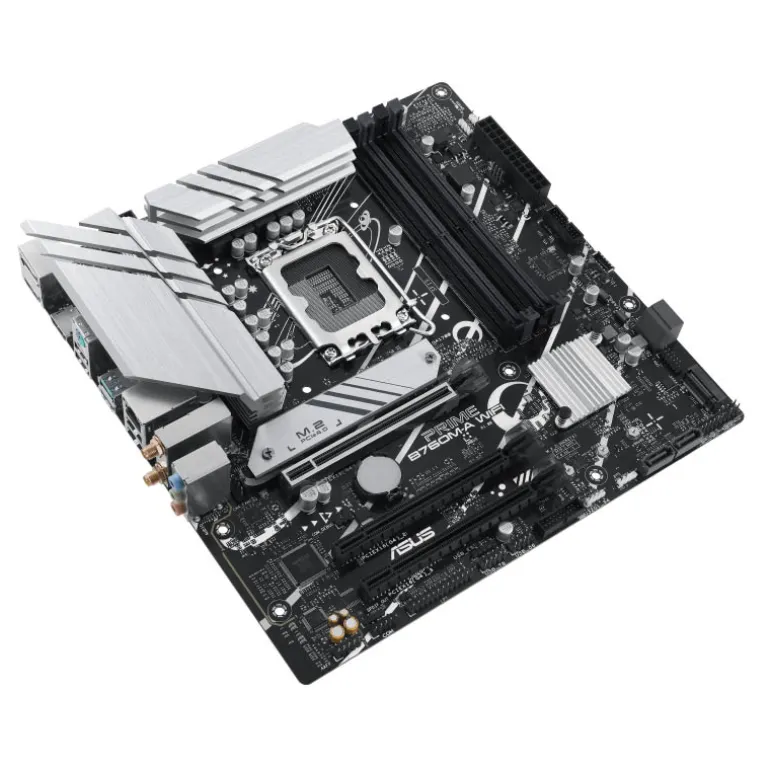

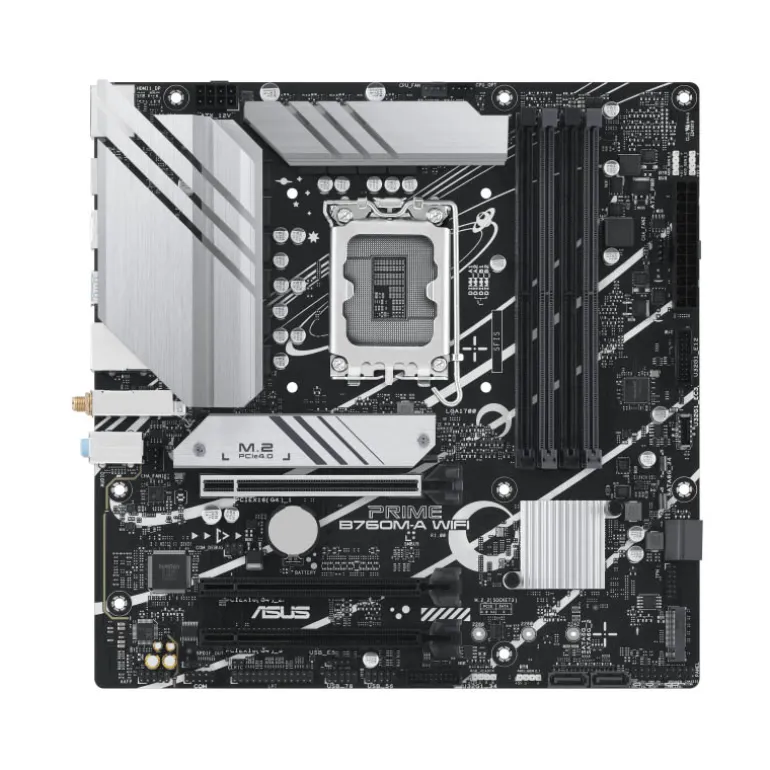

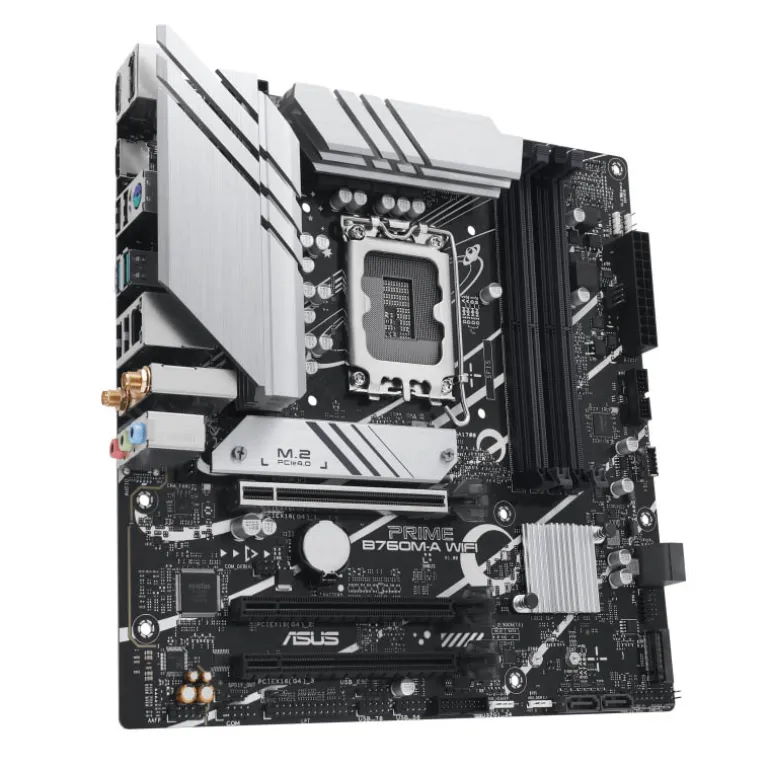

Placa Base Asus Prime B760M-A WIFI Socket 1700
Las placas base de la serie Prime de ASUS están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® Core鈩ª generación. La PRIME B760M-A WIFI cuenta con un diseño de alimentación estable, soluciones de refrigeración completas y opciones de ajuste inteligente. Esta placa base ofrece a los usuarios y amantes de los ordenadores a medida una amplia gama de optimizaciones de rendimiento a través de funciones de firmware y software intuitivo.
Preparado para los procesadores Intel® de 12.ª y 13.ª generación.
Conectividad ultrarrápid
PCIe 4.0, dos ranuras M.2, Ethernet Realtek de 2,5 GB, WiFi 6, USB 3.2 Gen 2 trasero, USB 3.2 Gen 1 de tipo C® frontal.
Refrigeración completa
Disipadores térmicos de VRM, disipador térmico M.2, disipador térmico de PCH, cabezales de ventilador híbridos y Fan Xpert 2+.
Tecnología de memoria exclusiva
ASUS Enhanced Memory Profile II y ASUS OptiMem II
Iluminación RGB con Aura Sync: cabezales Gen 2 direccionables integrados y cabezal Aura RGB para tiras de LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync.
