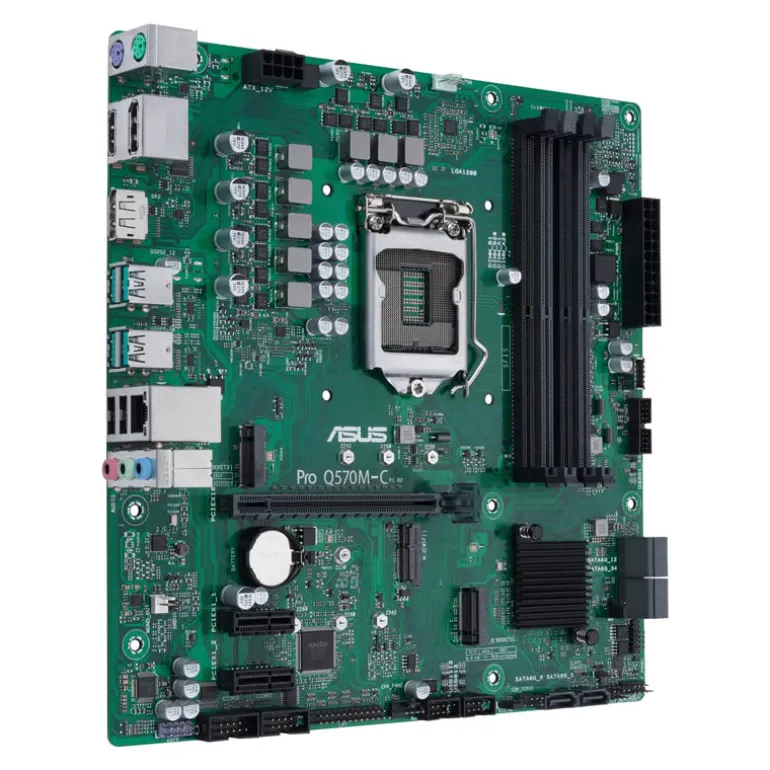

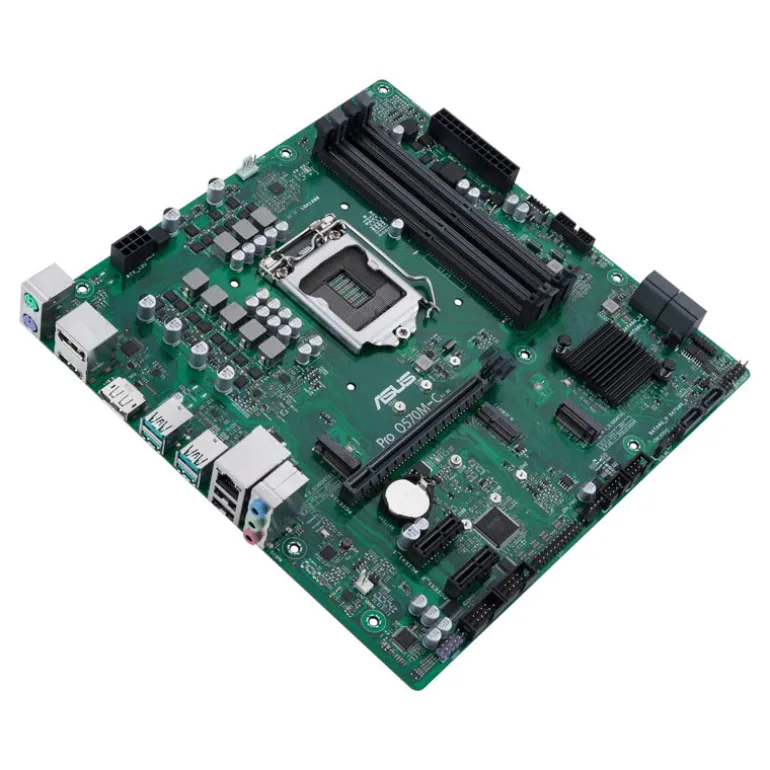

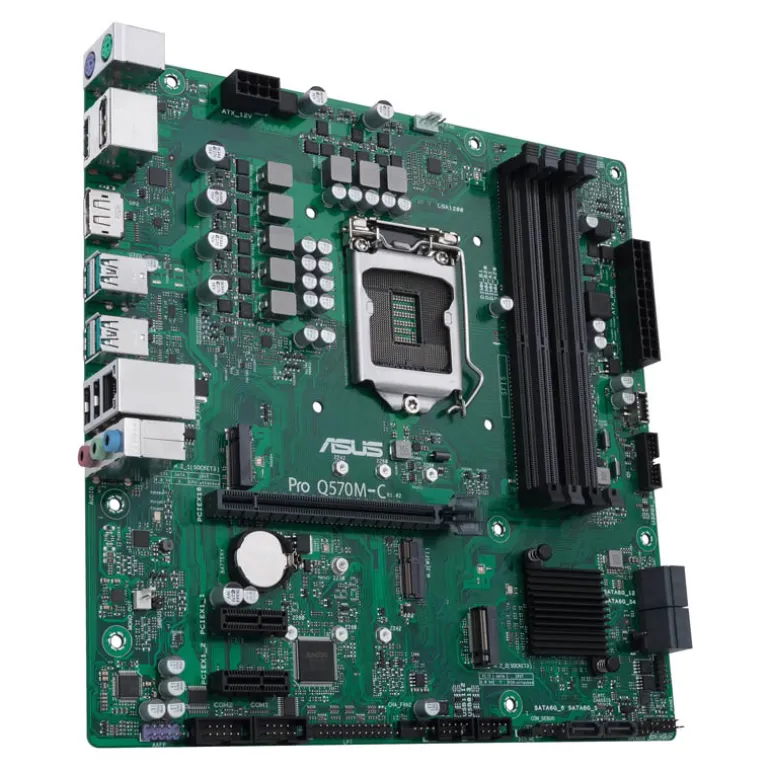

Placa Base Asus Pro Q570M C/CSM Socket 1200

• Intel® Socket LGA1200 for 11th Gen Intel® Core鈩& 10th Gen Intel® Core鈩® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *
• Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memoria

• Canales de Memoria:4 x DIMM, Max. 128GB, DDR4
• 4 x DIMM, Max. 128GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architectur
• Supports Intel® Extreme Memory Profile (XMP)
• Optimem
• * 10th Gen Intel® Core鈩
• * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Gráficos

• * Graphics specifications may vary between CPU types.
• ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
• *** Only Intel® 11th processors support HDMI鈩

Ranuras de expansión

• Intel® 11th & 10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot
• – Intel® 11th processors support PCIe 4.0 x16 mode
• – Intel® 10th processors support PCIe 3.0 x16 mode
• Intel® Q570 Chipset
• 2 x PCIe 3.0 x1 slots

Almacenamiento

• Intel® 11th & 10th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280
• – Only Intel® 11th Core鈩
• Intel® Q570 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)*
• 6 x SATA 6Gb/s ports
• * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
• RAID function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
• To enable Intel® Optane鈩® Rapid Storage Technology.

Ethernet

• 1 x Intel® I219-V 1Gb Ethernet

Wireless & Bluetooth

• M.2 slot only (Key E, CNVi & PCIe)

USB

• USB trasero:Total 6 ports
• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• USB frontal:Total 7 ports
• 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – Supports up to 24-Bit/192 kHz playback
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

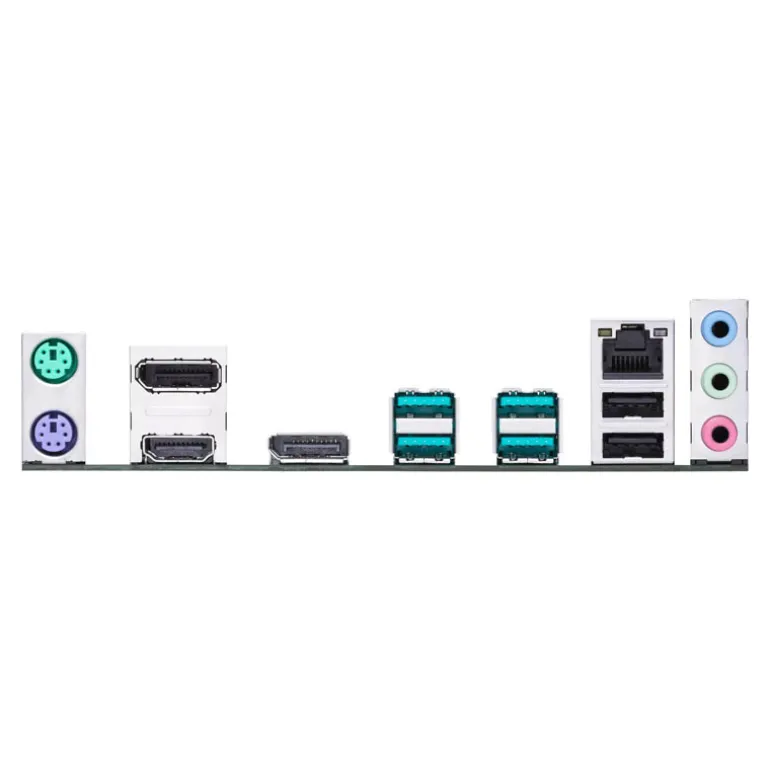

Puertos E/S traseros

• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)
• 2 x DisplayPort
• 1 x HDMITM
• 3 x Audio jacks
• 1 x Intel® I219-LM 1Gb Ethernet
• 1 x PS/2 keyboard (purple) port
• 1 x PS/2 mouse (green) port

Puertos internos

• Fan and cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Chassis Intrude header
• 2 x COM Port headers
• 1 x Front Panel Audio header (AAFP)
• 1 x COM debug header
• 1 x DIS ME jumper
• 1 x LPT header
• 1 x Mono-out header(with Amp IC)
• 1 x M.2 slot (Key E)
• 1 x SMBUS header
• 1 x Speaker header
• 1 x 10-1 System Panel header

Funciones especiales de ASUS

• ASUS EZ DIY
• – Box Headers
• Bespoke Motherboard Design & Business Focused Features
• – ASUS Self Recovering BIOS
• – ASUS Event Log
• – ASUS Commercial BIOS kit
• – Anti-Moisture
• – 24/7 Reliability
• – Overcurrent Protection
• TPM 2.0 IC onboard

Software

• ASUS Exclusive Software
• IT Management software supported
• – ASUS Control Center Express(ACCE)

BIOS

• 128+64 Mb Flash ROM

Manejabilidad

• WOL by PME, PXE

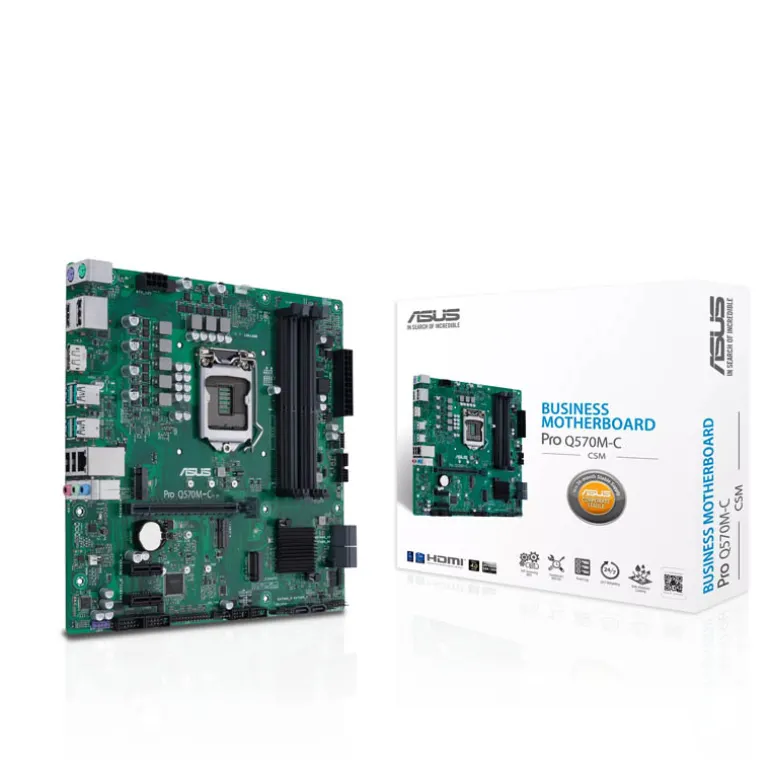

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 SSD screw package
• 1 x M.2 Key E screw package
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x ACC Express Activation Key Card
• 1 x User manual

Sistema operativo

• Windows® 10 64-bit
• Windows® 7 64-bit *1

Factor de forma

• mATX
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
